Software module 233

Ducati Scrambler 800 dashboard
Memory device is serial eeprom 95c512 SMD8 package.

Expected file size is 65536 bytes.

Use TMPro chip or Texas Crypto 40/80 bit transponder, for example Ford 80-bit

Software shows 4-digit PIN code.

Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati:Scrambler 800
Software module 209

Ducati Panigale V4 dashboard MAE
Memory device is serial eeprom 24c32 SMD8 package.
Expected file size is 4096 bytes.
Use Texas Crypto 40/80 bit transponder, for example Ford 80-bit
Software shows 5-digit PIN code.
Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati: Panigale V4
Software module 205

Ducati Multistrada dashboard MAE.
Memory device is Motorola 9S12G192 QFP100 package.
You can read and write Motorola 9S12G192 with TMPro.
Expected file size is 4096 bytes.
Use Texas Crypto 40/80 bit transponder, for example Ford 80-bit
Software shows PIN code.
Written transponder is ready programmed to start bike.

IMPORTANT NOTE:This software is for Ducati Multistrada with NORMAL key, not keyless start. Please check with your bike before to order.

Vehicles equipped with this unit:
Ducati: Multistrada
Software module 197

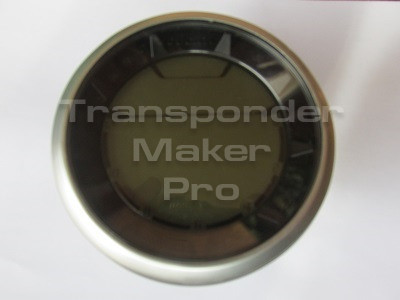

Ducati Scrambler bike dashboard

Memoy device is serial eeprom 24c16 SMD8 package. Expected file size is 2048 bytes. Use Texas Crypto 40/80 bit transponder or original Ducati key. Software shows PIN code.

Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati: Scrambler
Software module 193

Ducati Monster dashboard COBO
Memoy device is serial eeprom 24c512 SMD8 package.
Expected file size is 65536 bytes.
Use Texas Crypto 40/80 bit transponder, for example Ford 80-bit .
Software shows PIN code.
Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati: Monster 797, 821, 1200
Software module 192

Ducati Monster dashboard MTA
Memoy device is serial eeprom 24c16 SMD8 package.
Expected file size is 2048 bytes.
Use JMA TPX2 – Errebi TX2 or CN2/CN5 or K-JMD or YS-01 transponder.
Software shows PIN code.
Written transponder is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati: Monster 821
Software module 189

Ducati 2013 Hypermotard bike dashboard MAE
Memory device is serial eeprom 24c02 SMD5 package.
Expected file size is 256 bytes.
Use Texas Crypto 40/80 bit transponder, for example Ford 80-bit
Written transponder is ready programmed to start bike.
Module also shows PIN code.
Your dashboard can be also module 177. Please look here before to order this software:

Vehicles equipped with this unit:
Ducati: Hypermotard (2013-), Hyperstrada (2013-)
Software module 182

Ducati Panigale bike immobox ZADI. Memory device is Motorola 9S12P128. You can read Motorola 9S12P128 using TMPro, download connection diagram.
Expected file size is 4096 bytes. Use Texas Crypto 4D-60 or 6D-60 transponder or original Ducati key. Written transponder is ready programmed to start bike. Software shows 5-digit PIN code.

Vehicles equipped with this unit:
Ducati: Panigale 899, 1099, 1199
Software module 178

Ducati bikes handsfree ZADI
Memory device is serial eeprom 24c04, download connection diagram Expected file size is 512 bytes
Use Texas Crypto transponder or original Ducati handsfree key.
If you program original handsfree key please remove battery during key programming.
If you program transponder, to start bike you must put it near antenna. Look here where is antenna located. Written transponder or key is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati:Diavel,Multistrada
Software module 177

Ducati bikes with dashboard MAE Electronics. Memory device is PIC18F6585 QFP64 package. You can read PIC18F6585 with TMPro.
It is just necessary to cut a small hole for to access programming points, no need to open dash completely. Use T5 transponder.
Written transponder is ready programmed to start the bike. Software shows 5-digit PIN code.

Your dashboard can be also module 189. Please look here before to order this software.

Vehicles equipped with this unit:
Ducati:Hypermotard,Streetfighter
