Software module 178

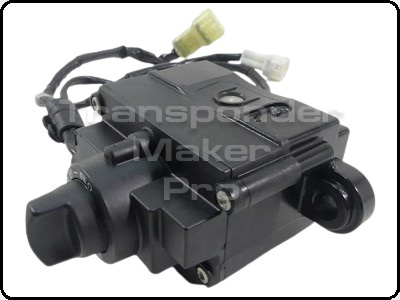

Ducati bikes handsfree ZADI
Memory device is serial eeprom 24c04, view connection diagram Expected file size is 512 bytes
Use TMPro chip or Texas Crypto transponder or original Ducati handsfree key.
If you program original handsfree key please remove battery during key programming.
If you program transponder, to start bike you must put it near antenna. Look here where is antenna located.

Written transponder or key is ready programmed to start bike.

Vehicles equipped with this unit:
Ducati:Diavel,Multistrada
Software module 177

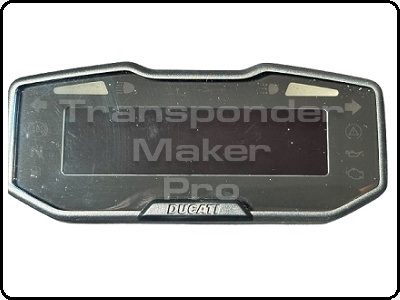

Ducati bikes with dashboard MAE Electronics

Memory device is PIC18F6585 QFP64 package.

You can read PIC18F6585 with TMPro.
It is just necessary to cut a small hole for to access programming points no need to open dash completely.
Use TMPro chip or T5 transponder. Software shows 5-digit PIN code.


Written transponder is ready programmed to start the bike.

Your dashboard can be also module 189. Please look here before to order this software.

Vehicles equipped with this unit:
Ducati:Hypermotard,Streetfighter
Software module 101

Ducati bikes dashboard Digitek

Memory device is serial eeprom 24c16 SMD8 package.
Expected file size is 2048 bytes.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the bike.
Software shows PIN code.

Vehicles equipped with this unit:
Ducati: 848, 948, 1049, 1098, 1198
Software module 58

Ducati bikes dashboard Marelli

Memory device is serial eeprom 24c02 or 24c16 SMD8 package.
Expected file size is 256 or 2048 bytes.
Softwae shows 5-digit PIN code.
Use TMPro chip or T5 transponder.
Written transponder is ready programmed to start the vehicle.
Software shows 5-digit PIN code.

Vehicles equipped with this unit:
Ducati: 600, 620, 749, 800, 900, 999, 1000
